项目 HTTP API

项目 HTTP API为您提供了项目级别的API接口，包括对项目、设备、产品、服务信息等全面的资源访问，采用HTTP RESTful风格.

准备工作

创建项目获得API密钥

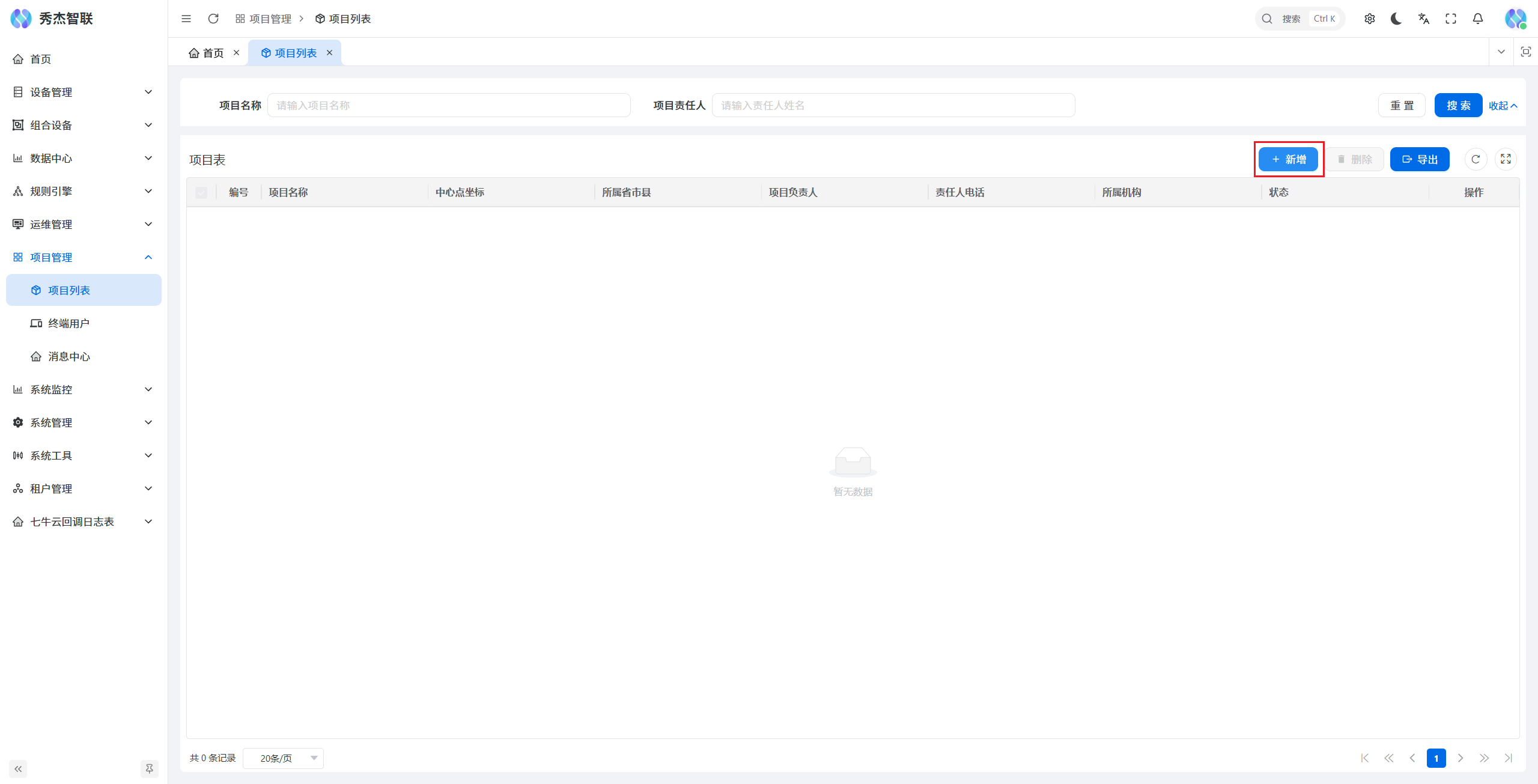

在JieIOT平台，进入项目管理页面，点击项目列表，即可看到项目表页面，点击新增按钮，即可创建您的项目。

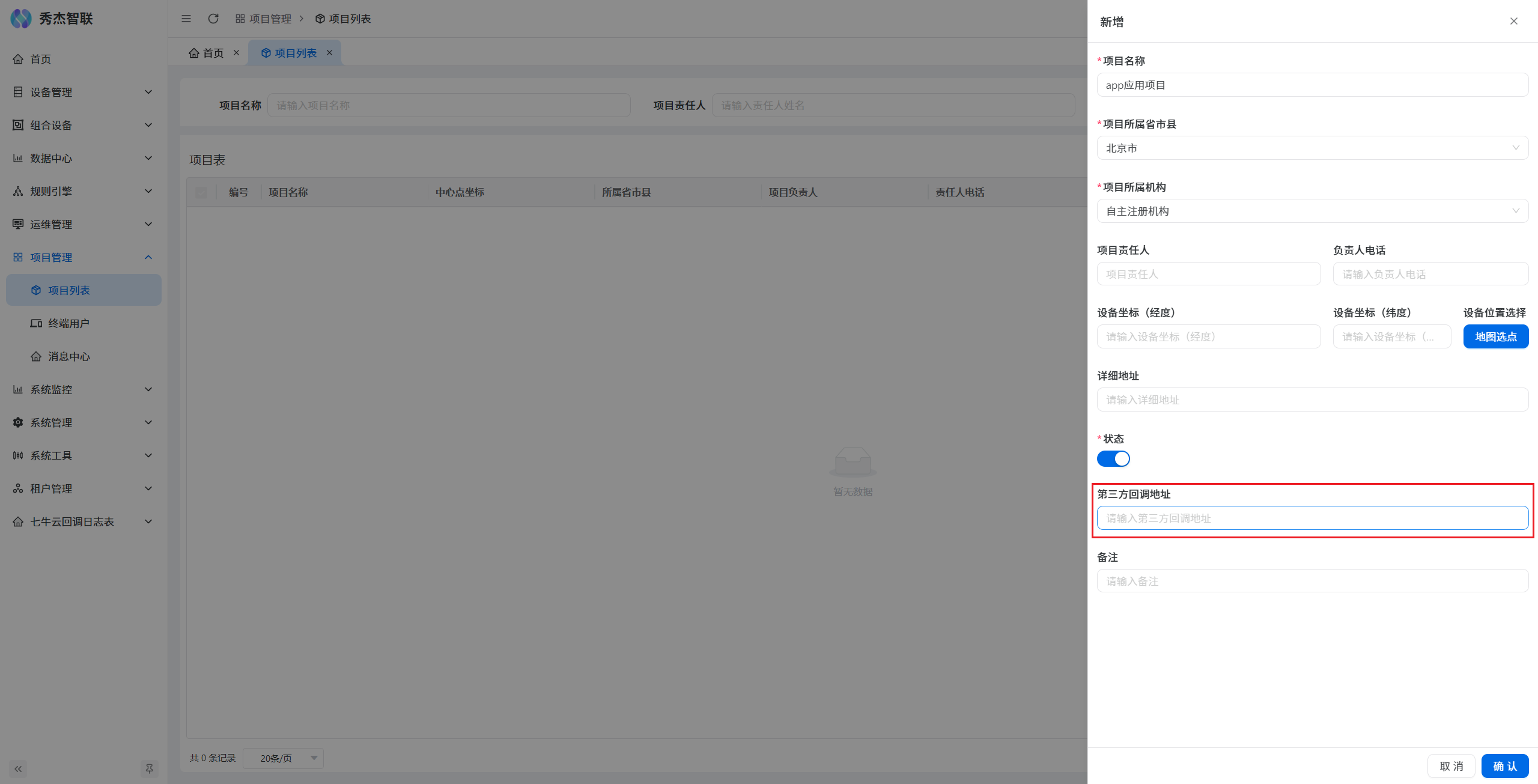

在项目新增页面，填写项目信息，并点击确认按钮，即可创建项目。这里的项目信息您可以在操作栏->修改中随时修改

注意：此处的第三方回调地址需要根据您的部署环境填写，详情请查看消息回调

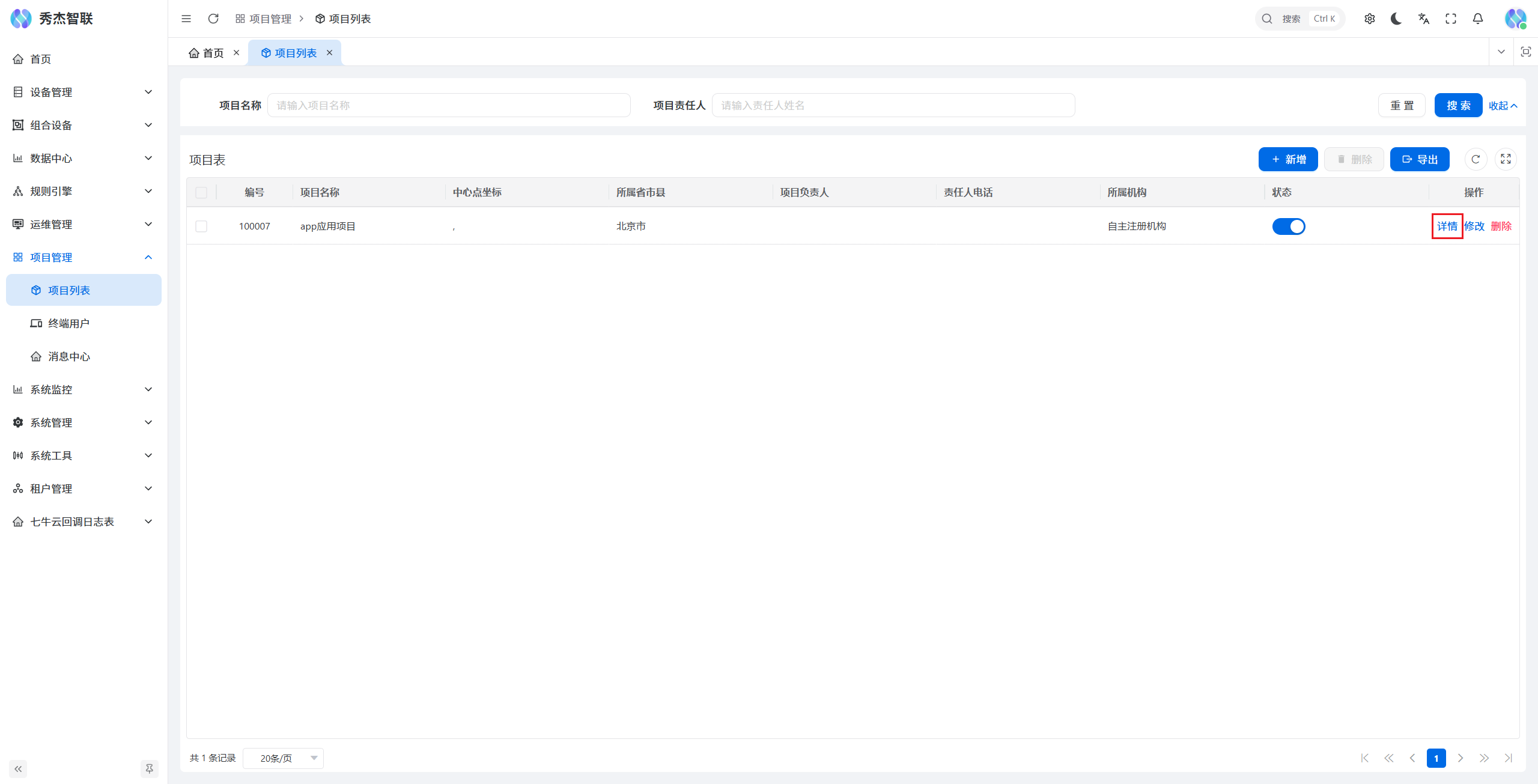

项目创建好之后，点击项目列表页面操作栏的详情按钮，进入即可获取 ProjectID 和 API Key,用于请求API时的身份验证。

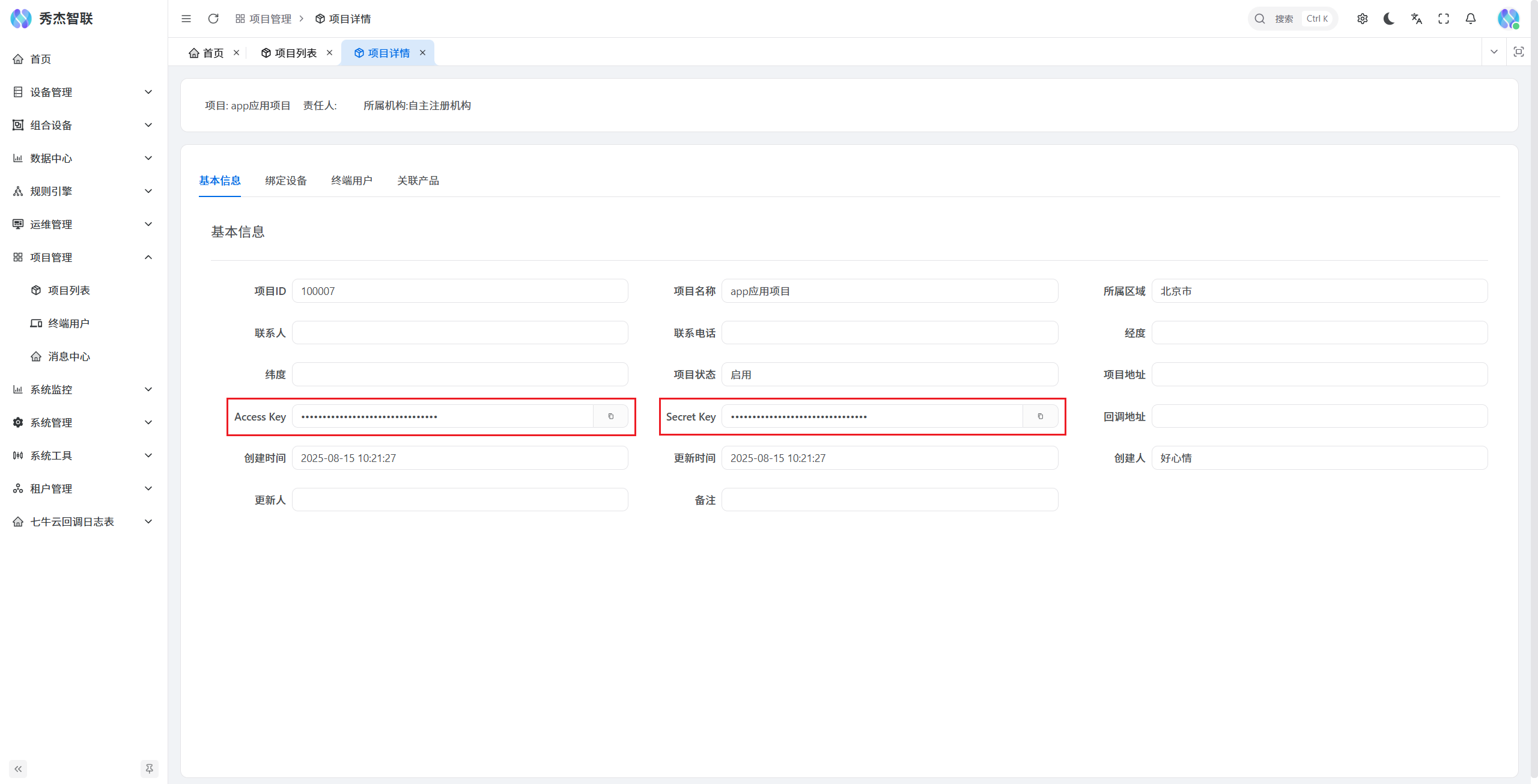

在项目详情页面->基本信息部分，可获得项目的 ProjectID 和 API Key。点击 Access Key 和 Secret Key右侧的复制按钮，即可获取。

如何获得项目API接入地址

在JieIOT平台，进入您刚刚创建的项目详情页面，点击基本信息，即可看到项目API接入地址

不同项目的API接入点地址可能不同，请您以控制台获取的地址为准。

API请求代码示例

以获取API AccessToken为例，以下是常用编程语言请求API的代码示例，仅供参考：

func main() {
	pubservice.ApiClient().SetAddress("https://<api-endpoint>/api/v1/access_token")
	pubservice.ApiClient().SetToken(token)
	if token == "" {
		res, err := pubservice.ApiClient().AccessToken(ctx, &v1.AccessTokenReq{
			AccessTokenInput: &pubmodel.AccessTokenInput{
				ProjectId: <project_id>,
				AccessKey: "<access_key>",
				SecretKey: "<secret_key>",
			},
		})
		if err != nil {
			g.Log().Errorf(ctx, "AccessToken error: %v", err)
			return
		}
		g.Log().Infof(ctx, "AccessToken res: %+v", res)
		g.Log().Infof(ctx, "AccessToken AccessTokenOutput: %+v", res.Data.AccessTokenOutput)
	}
	productList(ctx)
}
func productList(ctx context.Context) {
	res, err := pubservice.ApiClient().ProductList(ctx, &v1.ProductListReq{
		ProductListInput: &pubmodel.ProductListInput{
			Page:     1,
			PageSize: 100,
		},
	})
	if err != nil {
		g.Log().Errorf(ctx, "ProductList error: %v", err)
		return
	}
	g.Log().Infof(ctx, "ProductList res: %+v", res)
	g.Log().Infof(ctx, "ProductList Total: %+v", res.Data.Total)
	for k, v := range res.Data.List {
		g.Log().Infof(ctx, "ProductList List index: %d, item: %+v", k, v)
	}
}

Python

import requests
import json

api_url = "https://<api-endpoint>/api/v1/access_token"

post_data = {
    "accessTokenInput": {
        "projectId": "<project_id>",
        "accessKey": "<access_key>",
        "secretKey": "<secret_key>"
    }
}

try:
    response = requests.post(api_url, json=post_data, headers={"Content-Type": "application/json"})
    response.raise_for_status()
    print("AccessToken res:", json.dumps(response.json(), indent=2))
except requests.RequestException as e:
    print("AccessToken error:", e)

NodeJS

const axios = require('axios');

const postData = {
  accessTokenInput: {
    projectId: '<project_id>',
    accessKey: '<access_key>',
    secretKey: '<secret_key>'
  }
};

axios.post('https://<api-endpoint>/api/v1/access_token', postData, {
  headers: {
    'Content-Type': 'application/json'
  }
})
.then(response => {
  console.log('AccessToken res:', response.data);
  console.log('AccessTokenOutput:', response.data?.data?.accessTokenOutput);
})
.catch(error => {
  console.error('AccessToken error:', error.response ? error.response.data : error.message);
});

PHP

<?php
$url = "https://<api-endpoint>/api/v1/access_token";

$postData = [
    "accessTokenInput" => [
        "projectId" => "<project_id>",
        "accessKey" => "<access_key>",
        "secretKey" => "<secret_key>"
    ]
];

$ch = curl_init($url);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    "Content-Type: application/json"
]);
curl_setopt($ch, CURLOPT_POSTFIELDS, json_encode($postData));

$response = curl_exec($ch);
if (curl_errno($ch)) {
    echo "AccessToken error: " . curl_error($ch);
} else {
    echo "AccessToken res: " . $response . PHP_EOL;
}
curl_close($ch);

Java

import java.io.OutputStream;
import java.net.HttpURLConnection;
import java.net.URL;
import java.nio.charset.StandardCharsets;

public class AccessTokenExample {
    public static void main(String[] args) {
        String apiUrl = "https://<api-endpoint>/api/v1/access_token";

        String jsonData = """
            {
              "accessTokenInput": {
                "projectId": "<project_id>",
                "accessKey": "<access_key>",
                "secretKey": "<secret_key>"
              }
            }
            """;

        try {
            URL url = new URL(apiUrl);
            HttpURLConnection conn = (HttpURLConnection) url.openConnection();
            conn.setRequestMethod("POST");
            conn.setRequestProperty("Content-Type", "application/json");
            conn.setDoOutput(true);

            try (OutputStream os = conn.getOutputStream()) {
                byte[] input = jsonData.getBytes(StandardCharsets.UTF_8);
                os.write(input, 0, input.length);
            }

            // 读取响应
            try (var br = new java.io.BufferedReader(
                    new java.io.InputStreamReader(conn.getInputStream(), StandardCharsets.UTF_8))) {
                StringBuilder response = new StringBuilder();
                String line;
                while ((line = br.readLine()) != null) {
                    response.append(line.trim());
                }
                System.out.println("AccessToken res: " + response);
            }

        } catch (Exception e) {
            System.err.println("AccessToken error: " + e.getMessage());
        }
    }
}

using System;
using System.Net.Http;
using System.Text;
using System.Threading.Tasks;

class Program
{
    static async Task Main(string[] args)
    {
        var apiUrl = "https://<api-endpoint>/api/v1/access_token";

        var jsonData = @"{
            ""accessTokenInput"": {
                ""projectId"": ""<project_id>"",
                ""accessKey"": ""<access_key>"",
                ""secretKey"": ""<secret_key>""
            }
        }";

        using (var client = new HttpClient())
        {
            var content = new StringContent(jsonData, Encoding.UTF8, "application/json");

            try
            {
                var response = await client.PostAsync(apiUrl, content);
                var responseBody = await response.Content.ReadAsStringAsync();

                Console.WriteLine("AccessToken res: " + responseBody);
            }
            catch (Exception ex)
            {
                Console.WriteLine("AccessToken error: " + ex.Message);
            }
        }
    }
}

获取API AccessToken

在使用平台的API之前，需要先调用身份验证接口获取API AccessToken，作为API请求的认证信息。

服务器获取AccessToken

通过服务器发起请求，获取AccessToken。

Request Syntax

json

POST /api/v1/auth/accessToken
Content-Type: application/json

{
  "projectId": 0,
  "accessKey": "string",
  "secretKey": "string"
}

Request Body

Field	Type	Required	Description
`projectId`	string	Yes	在JieIOT平台项目详情中获取
`accessKey`	string	Yes	在JieIOT平台项目详情中获取
`secretKey`	string	Yes	在JieIOT平台项目详情中获取

Response Syntax

json

200 Response
Content-Type: application/json

{
  "Token": "string"
}

项目信息

读取项目信息

读取当前项目的信息。

Request Syntax

json

GET /api/v1/project/info
Content-Type: application/json
Authorization: Bearer < AccessToken >

Response Syntax

json

200 Response
Content-Type: application/json
{
  "projectId": 0,
  "projectName": "string",
  "longitude": 0,
  "latitude": 0,
  "region": "string",
  "address": "string",
  "contactUser": "string",
  "contactPhone": "string",
  "status": "string",
  "tenantId": "string",
  "deptId": 0,
  "createdDept": 0,
  "createdBy": 0,
  "createdAt": "string",
  "updatedBy": 0,
  "updatedAt": "string",
  "remark": "string"
}

读取设备状态统计

读取项目中所有设备基本状态的统计。

Request Syntax

json

GET /api/v1/project/devicesStat
Content-Type: application/json
Authorization: Bearer < AccessToken >

Response Syntax

json

200 Response
Content-Type: application/json

读取设备告警状态统计

读取项目中所有设备告警状态的统计。

Request Syntax

json

GET /api/v1/project/devicesAlarmStat
Content-Type: application/json
Authorization: Bearer < AccessToken >

Response Syntax

json

200 Response
Content-Type: application/json

设备管理

读取设备列表

读取所有设备列表

Request Syntax

json

GET /api/v1/device/list
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
page	integer(int)	none
pageSize	integer(int)	none
productKey	string(string)	产品标识
createdAt	array([]string)	创建时间

Response Syntax

json

200 Response
Content-Type: application/json

{
  "list": [
    {
      "deviceKey": "string",
      "deviceName": "string",
      "productKey": "string",
      "productName": "string",
      "alarmState": 0,
      "createdAt": "string",
      "rssi": 0,
      "deviceState": 0,
      "lastOnlineTime": "string",
      "imgUrl": "string"
    }
  ],
  "total": 0
}

名称	类型	说明
deviceKey	string(string)	设备标识
deviceName	string(string)	设备名称
productKey	string(string)	产品标识
productName	string(string)	产品名称
alarmState	integer(int)	告警状态(0:正常 1:告警)
createdAt	string(string)	创建时间
rssi	integer(int)	信号强度
deviceState	integer(int)	设备状态(1-未激活，2-在线，3-离线)
lastOnlineTime	string(string)	最后在线时间
imgUrl	string(string)	设备图片

读取设备基本信息

读取指定设备的基本信息。

Request Syntax

json

GET /api/v1/device/baseinfo
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
deviceKey	string(string)	设备标识

Response Syntax

json

200 Response
Content-Type: application/json

{
  "tenantId": "string",
  "deviceKey": "string",
  "deviceName": "string",
  "deviceSrcName": "string",
  "productKey": "string",
  "productName": "string",
  "productCategoryId": 0,
  "productCategoryName": "string",
  "alarmState": 0,
  "createdAt": "string",
  "rssi": 0,
  "deviceState": 0,
  "lastOnlineTime": "string",
  "imgUrl": "string",
  "activeTime": "string",
  "warrantyEndTime": "string",
  "platformEndTime": "string",
  "iccid": "string",
  "imsi": "string",
  "imei": "string",
  "mac": "string",
  "deviceModel": "string",
  "wifiSsid": "string",
  "wifiIp": "string",
  "firmwareVersion": "string",
  "hardwareVersion": "string",
  "longitude": 0,
  "latitude": 0,
  "shareConsumerId": 0
}

名称	类型	说明
tenantId	string(string)	租户ID
deviceKey	string(string)	设备标识
deviceName	string(string)	设备名称
deviceSrcName	string(string)	设备来源名称
productKey	string(string)	产品标识
productName	string(string)	产品名称
productCategoryId	integer(int64)	产品分类ID
productCategoryName	string(string)	产品分类名称
alarmState	integer(int)	告警状态(0:正常 1:告警)
createdAt	string(string)	创建时间
rssi	integer(int)	信号强度
deviceState	integer(int)	设备状态（1-未激活，2-在线，3-离线）
lastOnlineTime	string(string)	最后在线时间
imgUrl	string(string)	设备图片
activeTime	string(string)	激活时间
warrantyEndTime	string(string)	质保结束时间
platformEndTime	string(string)	平台服务结束时间
iccid	string(string)	ICCID
imsi	string(string)	IMSI
imei	string(string)	IMEI
mac	string(string)	MAC
deviceModel	string(string)	设备型号
wifiSsid	string(string)	WIFI SSID
wifiIp	string(string)	WIFI IP
firmwareVersion	string(string)	固件版本号
hardwareVersion	string(string)	硬件版本号
longitude	number(float64)	设备坐标（经度）
latitude	number(float64)	设备坐标（纬度）
shareConsumerId	integer(int64)	共享用户ID

读取设备详情

Request Syntax

json

GET /api/v1/device/info
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
deviceKey	string(string)	设备标识

Response Syntax

json

200 Response
Content-Type: application/json
{
  "deviceKey": "string",
  "deviceName": "string",
  "productKey": "string",
  "productName": "string",
  "alarmState": 0,
  "createdAt": "string",
  "rssi": 0,
  "deviceState": 0,
  "lastOnlineTime": "string",
  "properties": {
    "property1": {
      "key": "string",
      "name": "string",
      "type": "string",
      "unit": "string",
      "value": {},
      "ts": "string"
    },
    "property2": {
      "key": "string",
      "name": "string",
      "type": "string",
      "unit": "string",
      "value": {},
      "ts": "string"
    }
  },
  "tsl": {
    "key": "string",
    "name": "string",
    "properties": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "desc": "string",
        "extFlag": {
          "isChart": 0,
          "isMonitor": 0,
          "isReadonly": 0,
          "isHistory": 0,
          "isSharePerm": 0
        },
        "valueType": {
          "type": "string",
          "max": 0,
          "min": 0,
          "decimals": 0,
          "unit": "string",
          "step": 0,
          "trueText": "string",
          "falseText": "string",
          "maxLength": 0,
          "invalidAction": 0,
          "fromType": "string",
          "formula": "string",
          "defaultValue": "string",
          "enumList": [
            null
          ],
          "itemType": "string",
          "arrayCount": 0,
          "itemKeys": [
            null
          ],
          "items": [
            null
          ]
        },
        "mapping": {
          "type": "string",
          "key": "string"
        }
      }
    ],
    "functions": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "inputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "outputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "desc": "string",
        "extFlag": {
          "isHistory": 0,
          "isSharePerm": 0
        }
      }
    ],
    "events": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "inputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "desc": "string",
        "extFlag": {
          "isHistory": 0,
          "isSharePerm": 0
        }
      }
    ],
    "tags": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "desc": "string",
        "extFlag": {
          "isChart": 0,
          "isMonitor": 0,
          "isReadonly": 0,
          "isHistory": 0,
          "isSharePerm": 0
        },
        "valueType": {
          "type": "string",
          "max": 0,
          "min": 0,
          "decimals": 0,
          "unit": "string",
          "step": 0,
          "trueText": "string",
          "falseText": "string",
          "maxLength": 0,
          "invalidAction": 0,
          "fromType": "string",
          "formula": "string",
          "defaultValue": "string",
          "enumList": [
            null
          ],
          "itemType": "string",
          "arrayCount": 0,
          "itemKeys": [
            null
          ],
          "items": [
            null
          ]
        },
        "mapping": {
          "type": "string",
          "key": "string"
        }
      }
    ],
    "extConfig": {
      "gpsConfig": {
        "latAndLongKey": "string",
        "latitudeKey": "string",
        "longitudeKey": "string"
      },
      "simCardConfig": {
        "iccidKey": "string",
        "imsiKey": "string"
      },
      "tsdbConfig": {
        "storePolicy": 0
      },
      "tagsConfig": {
        "property1": "string",
        "property2": "string"
      }
    }
  },
  "imgUrl": "string",
  "deviceConfig": "string"
}

名称	类型	说明
deviceKey	string(string)	设备标识
deviceName	string(string)	设备名称
productKey	string(string)	产品标识
productName	string(string)	产品名称
alarmState	integer(int)	告警状态(0:正常 1:告警)
createdAt	string(string)	创建时间
rssi	integer(int)	信号强度
deviceState	integer(int)	设备状态（1-未激活，2-在线，3-离线）
lastOnlineTime	string(string)	最后在线时间
imgUrl	string(string)	设备图片
deviceConfig	string(string)	设备配置信息

读取设备属性列表

Request Syntax

json

GET /api/v1/device/getProperty
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
device_key	string(string)	none

Response Syntax

json

200 Response
Content-Type: application/json

{
  "device_key": "string",
  "properties": {
    "property1": {
      "key": "string",
      "name": "string",
      "type": "string",
      "unit": "string",
      "value": {},
      "ts": "string"
    },
    "property2": {
      "key": "string",
      "name": "string",
      "type": "string",
      "unit": "string",
      "value": {},
      "ts": "string"
    }
  }
}

名称	类型	说明
device_key	string(string)	设备标识
properties	object(map[string]*DevicePropertyCache)	属性列表

设备属性采集

进行设备属性主动采集

Request Syntax

json

POST /api/v1/device/propertyCollect
Content-Type: application/json
Authorization: Bearer < AccessToken >

{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "is_all_property": true,
  "property_keys": [
    "string"
  ],
  "is_async": true,
  "sync_timeout": 0,
  "cmd_interval": 0,
  "fail_retry": 0,
  "fail_continue": true,
  "consumerId": 0
}

Query Parameters

名称	类型	说明
msg_id	string(string)	消息ID,可不填
tenant_id	string(string)	租户ID,可不填
product_key	string(string)	产品标识
device_key	string(string)	设备标识
is_all_property	boolean(bool)	是否采集所有属性
property_keys	[string]	采集指定属性
is_async	boolean(bool)	是否异步调用,同步调用:false,异步调用:true 同步调用等待设备响应
sync_timeout	integer(int)	同步超时时间秒未填写默认10秒
cmd_interval	integer(int)	多条采集指令间隔时间秒
fail_retry	integer(int)	单条采集指令失败再重试次数 0是不重试
fail_continue	boolean(bool)	单条采集指令失败是否继续执行后续采集指令默认false
consumerId	integer(int64)	操作用户,选填

Response Syntax

json

200 Response
Content-Type: application/json

{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "code": 0,
  "message": "string"
}

名称	类型	说明
msg_id	string(string)	消息ID
tenant_id	string(string)	租户ID
product_key	string(string)	产品标识
device_key	string(string)	设备标识
code	integer(int)	状态码
message	string(string)	状态信息

设备属性设置

进行设备属性设置

Request Syntax

json

POST /api/v1/device/propertySet
Content-Type: application/json
Authorization: Bearer < AccessToken >

{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "input": {
    "property1": {},
    "property2": {}
  },
  "is_async": true,
  "sync_timeout": 0,
  "consumerId": 0
}

Query Parameters

名称	类型	说明
msg_id	string(string)	消息ID,可不填
tenant_id	string(string)	租户ID
product_key	string(string)	产品标识
device_key	string(string)	设备标识
input	object(map[string]interface)	输入参数
is_async	boolean(bool)	是否异步调用,同步调用:false,异步调用:true 同步调用等待设备响应
sync_timeout	integer(int)	同步超时时间秒默认10秒
consumerId	integer(int64)	操作用户,选填

Response Syntax

json

200 Response
Content-Type: application/json

{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "code": 0,
  "message": "string"
}

名称	类型	说明
msg_id	string(string)	none
tenant_id	string(string)	none
product_key	string(string)	none
device_key	string(string)	none
code	integer(int)	none
message	string(string)	none

获取设备历史属性

Request Syntax

json

GET /api/v1/device/historyPropertyStat
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
device_key	string(string)	设备标识
property_key	string(string)	属性标识
start_time	string(string)	开始时间
end_time	string(string)	结束时间
is_asc	boolean(bool)	是否升序
aggregate_window	string(string)	聚合窗口,示例:10s,1m,1h,1d
aggregate_function	string(string)	聚合函数,示例:AVG,SUM,MIN,MAX,COUNT,PERCENTILE
page	integer(int)	页码
pageSize	integer(int)	每页大小

Response Syntax

json

200 Response
Content-Type: application/json

{
  "page": 0,
  "pageSize": 0,
  "total": 0,
  "data": [
    {
      "key": "string",
      "name": "string",
      "type": "string",
      "unit": "string",
      "value": {},
      "ts": "string"
    }
  ]
}

获取设备历史事件

Request Syntax

json

GET /api/v1/device/historyEventStat
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
device_key	string(string)	设备标识
event_key	string(string)	事件标识
event_params	array([]string)	事件输入参数列表
start_time	string(string)	开始时间
end_time	string(string)	结束时间
is_asc	boolean(bool)	是否升序
aggregate_window	string(string)	聚合窗口,示例:10s,1m,1h,1d
aggregate_function	string(string)	聚合函数,示例:AVG,SUM,MIN,MAX,COUNT,PERCENTILE
page	integer(int)	页码
pageSize	integer(int)	每页大小

Response Syntax

json

200 Response
Content-Type: application/json

{
  "page": 0,
  "pageSize": 0,
  "total": 0,
  "data": {
    "property1": [
      {
        "key": "string",
        "name": "string",
        "type": "string",
        "unit": "string",
        "value": {},
        "ts": "string"
      }
    ],
    "property2": [
      {
        "key": "string",
        "name": "string",
        "type": "string",
        "unit": "string",
        "value": {},
        "ts": "string"
      }
    ]
  }
}

设备功能调用

进行设备功能调用

Request Syntax

json

POST /api/v1/device/functionDo
Content-Type: application/json
Authorization: Bearer < AccessToken >

{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "function_key": "string",
  "input": {
    "property1": {},
    "property2": {}
  },
  "is_async": true,
  "sync_timeout": 0,
  "consumerId": 0
}

Query Parameters

名称	类型	说明
msg_id	string(string)	消息ID,可不填
tenant_id	string(string)	租户ID
product_key	string(string)	产品标识
device_key	string(string)	设备标识
input	object(map[string]interface)	输入参数
is_async	boolean(bool)	是否异步调用,同步调用:false,异步调用:true 同步调用等待设备响应
sync_timeout	integer(int)	同步超时时间秒默认10秒
consumerId	integer(int64)	操作用户,选填

Response Syntax

json

200 Response
Content-Type: application/json
{
  "msg_id": "string",
  "tenant_id": "string",
  "product_key": "string",
  "device_key": "string",
  "function_key": "string",
  "code": 0,
  "message": "string",
  "output": {
    "property1": {},
    "property2": {}
  }
}

名称	类型	说明
msg_id	string(string)	none
tenant_id	string(string)	none
product_key	string(string)	none
device_key	string(string)	none
code	integer(int)	none
message	string(string)	none

读取设备操作日志列表

Request Syntax

json

GET /api/v1/device/optLogList
Content-Type: application/json
Authorization: Bearer < AccessToken >

{
  "page": 1,
  "pageSize": 1,
  "keyword": "string",
  "createdAt": [
    "string"
  ],
  "gtLogId": 0,
  "ltLogId": 0,
  "isAsc": true,
  "deviceKey": "string"
}

Query Parameters

名称	类型	说明
page	integer(int)	页码
pageSize	integer(int)	每页大小
keyword	string(string)	关键字
createdAt	array([]string)	创建时间
gtLogId	integer(int64)	大于日志ID, 非必填
ltLogId	integer(int64)	小于日志ID, 非必填
isAsc	boolean(bool)	是否升序
deviceKey	string(string)	设备标识

Response Syntax

json

200 Response
Content-Type: application/json

{
  "list": [
    {
      "logId": 0,
      "consumerId": 0,
      "deviceKey": "string",
      "optType": 0,
      "optTitle": "string",
      "isAsync": 0,
      "resCode": 0,
      "resMessage": "string",
      "createdAt": "string"
    }
  ],
  "total": 0
}

名称	类型	说明
logId	integer(int64)	自增ID
consumerId	integer(int64)	操作用户
deviceKey	string(string)	设备标识
optType	integer(uint)	类型;100:功能调用,101:分组功能调用,102:属性设置,103:分组属性设置,104:属性采集
optTitle	string(string)	消息标题
isAsync	integer(int)	是否异步
resCode	integer(int)	响应码
resMessage	string(string)	响应描述
createdAt	string(*gtime.Time)	创建时间

读取设备操作日志详情

Request Syntax

json

GET /api/v1/device/optLogView
Content-Type: application/json
Authorization: Bearer < AccessToken >

{
  "id": 0,
  "consumerId": 0,
  "optType": "string",
  "optContent": "string",
  "createdAt": "string"
}

Query Parameters

名称	类型	说明
id	integer(int64)	ID
consumerId	integer(int64)	用户ID
optType	string(string)	操作类型
optContent	string(string)	操作内容
createdAt	string(string)	创建时间

Response Syntax

json

200 Response
Content-Type: application/json

{
  "logId": 0,
  "consumerId": 0,
  "deviceKey": "string",
  "optType": 0,
  "optTitle": "string",
  "reqBody": "string",
  "resBody": "string",
  "isAsync": 0,
  "resCode": 0,
  "resMessage": "string",
  "createdAt": "string"
}

名称	类型	说明
logId	integer(int64)	自增ID
consumerId	integer(int64)	操作用户
deviceKey	string(string)	设备标识
optType	integer(uint)	类型;100:功能调用,101:分组功能调用,102:属性设置,103:分组属性设置,104:属性采集
optTitle	string(string)	消息标题
reqBody	string(string)	请求数据
resBody	string(string)	响应数据
isAsync	integer(int)	是否异步
resCode	integer(int)	响应码
resMessage	string(string)	响应描述
createdAt	string(*gtime.Time)	创建时间

消息回调（Message Callback）

关于第三方回调地址的说明

当平台产生特定事件（如设备状态变化、告警触发、任务完成等）时，会主动向用户配置的回调地址（Callback URL）发送通知。用户系统可通过接收并解析该通知，实现事件的实时处理。

作用

实时获取平台推送的事件信息,减少轮询请求，降低接口调用频率,支持自定义业务逻辑（如自动更新状态、触发告警处理等）

触发时机

例如：设备上线/离线

设备属性变化

告警触发与解除

任务执行结果返回

请求方式

json

HTTP Method：POST

Content-Type：application/json

重试机制：发送失败会按一定策略重试（可配置）

回调数据

回调数据示例-设备上线回调

json

{
  "msgType": "device_up", // 消息类型  "device_up":设备上下线或设备属性消息
  "timestamp": "<timestamp>",
  "data": {
    "method": "thing.online.event",     // 系统消息-上线
    "tenantId": "1",
    "projectId": 2001,
    "productKey": "123",
    "deviceKey": "dev_xyz456",
    "msgId": "b7e2c1d0a8f14e2b9c3f1a2d4e5f6b7c",  // uuid32.S()
    "time": 1692182400000,  // 时间戳毫秒
},
  "sign": "<signature>"
}

回调数据示例-设备下线回调

json

{
  "msgType": "device_up", // 消息类型  "device_up":设备上下线或设备属性消息
  "timestamp": "<timestamp>",
  "data": {
    "method": "thing.offline.event",     // 系统消息-下线
    "tenantId": "1",
    "projectId": 2001,
    "productKey": "prod_abc123",
    "deviceKey": "dev_xyz456",
    "msgId": "b7e2c1d0a8f14e2b9c3f1a2d4e5f6b7c",  // uuid32.S()
    "time": 1692182400000,  // 时间戳毫秒
  },
  "sign": "<signature>"
}

回调数据示例-属性上报回调

json

{
  "msgType": "device_up", // 消息类型  "device_up":设备上下线或设备属性消息
  "timestamp": "<timestamp>",
  "data": {
    "method": "thing.property.post",
    "tenantId": "tenant_001",
    "productKey": "prod_abc123",
    "deviceKey": "dev_xyz456",
    "msgId": "b7e2c1d0a8f14e2b9c3f1a2d4e5f6b7c",  // uuid32.S()
    "time": 1692182400000,  // 时间戳毫秒
    "propertys": {
      "propertyKey": {
        "Value": 25.5,
        "Time": 1692182400000,
        "Type": "float"
      },
    }
  },
  "sign": "<signature>"
}

回调数据示例-事件上报回调

json

{
  "msgType": "device_alarm", // 消息类型  "device_alarm":设备告警消息
  "timestamp": "<timestamp>",
  "data": {
    "alarmLogId" : 123456,  //报警记录ID
    "alarmConfigId"  : 7890,  //报警配置ID
    "sceneId" : 1001,  //场景ID
    "productKey": "prod_abc123",  // 产品标识
    "deviceKey": "dev_xyz456",  // 设备标识
    "title": "温度超限告警", // 报警标题
    "alarmLevel": 2, // 报警级别（1=提醒通知 2=轻微问题 3=验证警告）
    "startTime": 1692182400000, // 开始时间
    "sceneConditions": "{\"temperature\":{\"gt\":30}}", // 场景条件JSON
    "tenantId": "tenant_001", // 租户ID（报警配置所属租户）
    "deptId": 200, // 所属机构
    "projectId"  : 2001 // 项目ID
  },
  "sign": "<signature>"
}

开发者须知

回调地址需公网可访问，支持 HTTPS 优先,建议对回调内容进行签名验证，确保来源可靠。

请记录并处理回调日志，避免重复处理同一事件。

产品管理

读取产品信息

Request Syntax

json

GET /api/v1/product/info
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
productKey	string(string)	产品标识

Response Syntax

json

200 Response
Content-Type: application/json

{
  "productKey": "string",
  "productName": "string",
  "productAlias": "string",
  "categoryId": 0,
  "deviceType": 0,
  "firmwareType": 0,
  "networkType": 0,
  "transport": 0,
  "channelType": 0,
  "imgUrl": "string",
  "onlineTimeout": 0,
  "deviceModel": "string",
  "createdAt": "string",
  "updatedBy": 0,
  "updatedAt": "string",
  "remark": "string",
  "tsl": {
    "key": "string",
    "name": "string",
    "properties": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "desc": "string",
        "extFlag": {
          "isChart": 0,
          "isMonitor": 0,
          "isReadonly": 0,
          "isHistory": 0,
          "isSharePerm": 0
        },
        "valueType": {
          "type": "string",
          "max": 0,
          "min": 0,
          "decimals": 0,
          "unit": "string",
          "step": 0,
          "trueText": "string",
          "falseText": "string",
          "maxLength": 0,
          "invalidAction": 0,
          "fromType": "string",
          "formula": "string",
          "defaultValue": "string",
          "enumList": [
            null
          ],
          "itemType": "string",
          "arrayCount": 0,
          "itemKeys": [
            null
          ],
          "items": [
            null
          ]
        },
        "mapping": {
          "type": "string",
          "key": "string"
        }
      }
    ],
    "functions": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "inputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "outputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "desc": "string",
        "extFlag": {
          "isHistory": 0,
          "isSharePerm": 0
        }
      }
    ],
    "events": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "inputs": [
          {
            "key": null,
            "name": null,
            "order": null,
            "desc": null,
            "extFlag": null,
            "valueType": null,
            "mapping": null
          }
        ],
        "desc": "string",
        "extFlag": {
          "isHistory": 0,
          "isSharePerm": 0
        }
      }
    ],
    "tags": [
      {
        "key": "string",
        "name": "string",
        "order": 0,
        "desc": "string",
        "extFlag": {
          "isChart": 0,
          "isMonitor": 0,
          "isReadonly": 0,
          "isHistory": 0,
          "isSharePerm": 0
        },
        "valueType": {
          "type": "string",
          "max": 0,
          "min": 0,
          "decimals": 0,
          "unit": "string",
          "step": 0,
          "trueText": "string",
          "falseText": "string",
          "maxLength": 0,
          "invalidAction": 0,
          "fromType": "string",
          "formula": "string",
          "defaultValue": "string",
          "enumList": [
            null
          ],
          "itemType": "string",
          "arrayCount": 0,
          "itemKeys": [
            null
          ],
          "items": [
            null
          ]
        },
        "mapping": {
          "type": "string",
          "key": "string"
        }
      }
    ],
    "extConfig": {
      "gpsConfig": {
        "latAndLongKey": "string",
        "latitudeKey": "string",
        "longitudeKey": "string"
      },
      "simCardConfig": {
        "iccidKey": "string",
        "imsiKey": "string"
      },
      "tsdbConfig": {
        "storePolicy": 0
      },
      "tagsConfig": {
        "property1": "string",
        "property2": "string"
      }
    }
  }
}

名称	类型	说明
productKey	string(string)	产品标识
productName	string(string)	产品名称
productAlias	string(string)	产品别名
categoryId	integer(int64)	产品分类ID
deviceType	integer(int)	设备类型（1-直连设备、2-网关设备、3-子设备、4-监控设备）
firmwareType	integer(int)	固件类型（1-分包、2-http）
networkType	integer(int)	连网方式（1-以太网、2-蜂窝、3-WIFI、4-NB、5-其他）
transport	integer(int)	通讯协议（1-内置MQTT协议、2-ModbusRTU、3-GB28181）
channelType	integer(int)	通道类型（1-MQTT服务器、2-TCP服务器、3-UDP服务器、4-HTTP服务、5-WebSocket服务、6-数据库服务、7-GB28181）
imgUrl	string(string)	图片地址
onlineTimeout	integer(int)	设备在线超时设置，单位：秒
deviceModel	string(string)	设备默认型号
createdAt	string(*gtime.Time)	创建时间
updatedBy	integer(int64)	更新者
updatedAt	string(*gtime.Time)	更新时间
remark	string(string)	备注
tsl	[git.xiujie.cn.jieiot.jie-public.pkg.iotmodel.tsl.TSL]	物模型

读取产品列表

Request Syntax

json

GET /api/v1/product/list
Content-Type: application/json
Authorization: Bearer < AccessToken >

Query Parameters

名称	类型	说明
page	integer(int)	none
pageSize	integer(int)	none

Response Syntax

json

200 Response
Content-Type: application/json

{
  "list": [
    {
      "productKey": "string",
      "productName": "string",
      "productAlias": "string",
      "categoryId": 0,
      "deviceType": 0,
      "firmwareType": 0,
      "networkType": 0,
      "transport": 0,
      "channelType": 0,
      "imgUrl": "string",
      "onlineTimeout": 0,
      "deviceModel": "string",
      "createdAt": "string",
      "updatedBy": 0,
      "updatedAt": "string",
      "remark": "string"
    }
  ],
  "total": 0
}

名称	类型	说明
productKey	string(string)	产品标识
productName	string(string)	产品名称
productAlias	string(string)	产品别名
categoryId	integer(int64)	产品分类ID
deviceType	integer(int)	设备类型（1-直连设备、2-网关设备、3-子设备、4-监控设备）
firmwareType	integer(int)	固件类型（1-分包、2-http）
networkType	integer(int)	连网方式（1-以太网、2-蜂窝、3-WIFI、4-NB、5-其他）
transport	integer(int)	通讯协议（1-内置MQTT协议、2-ModbusRTU、3-GB28181）
channelType	integer(int)	通道类型（1-MQTT服务器、2-TCP服务器、3-UDP服务器、4-HTTP服务、5-WebSocket服务、6-数据库服务、7-GB28181）
imgUrl	string(string)	图片地址
onlineTimeout	integer(int)	设备在线超时设置，单位：秒
deviceModel	string(string)	设备默认型号
createdAt	string(*gtime.Time)	创建时间
updatedBy	integer(int64)	更新者
updatedAt	string(*gtime.Time)	更新时间
remark	string(string)	备注

服务信息

读取服务信息

读取平台服务的信息

Request Syntax

json

GET /api/v1/info
Content-Type: application/json
Authorization: Bearer < AccessToken >

Response Syntax

json

200 Response
Content-Type: application/json

{
  "type": "string",
  "name": "string",
  "title": "string",
  "description": "string",
  "version": "string",
  "build": "string",
  "commit": "string"
}

名称	类型	说明
type	string(string)	none
name	string(string)	none
title	string(string)	none
description	string(string)	none
version	string(string)	none
build	string(string)	none
commit	string(string)	none

项目 HTTP API ​

准备工作 ​

创建项目获得API密钥 ​

如何获得项目API接入地址 ​

API请求代码示例 ​

获取API AccessToken ​

服务器获取AccessToken ​

项目信息 ​

读取项目信息 ​

读取设备状态统计 ​

读取设备告警状态统计 ​

设备管理 ​

读取设备列表 ​

读取设备基本信息 ​

读取设备详情 ​

读取设备属性列表 ​

设备属性采集 ​

设备属性设置 ​

获取设备历史属性 ​

获取设备历史事件 ​

设备功能调用 ​

读取设备操作日志列表 ​

读取设备操作日志详情 ​

消息回调（Message Callback） ​

产品管理 ​

读取产品信息 ​

读取产品列表 ​

服务信息 ​

读取服务信息 ​

项目 HTTP API

准备工作

创建项目获得API密钥

如何获得项目API接入地址

API请求代码示例

获取API AccessToken

服务器获取AccessToken

项目信息

读取项目信息

读取设备状态统计

读取设备告警状态统计

设备管理

读取设备列表

读取设备基本信息

读取设备详情

读取设备属性列表

设备属性采集

设备属性设置

获取设备历史属性

获取设备历史事件

设备功能调用

读取设备操作日志列表

读取设备操作日志详情

消息回调（Message Callback）

产品管理

读取产品信息

读取产品列表

服务信息

读取服务信息
